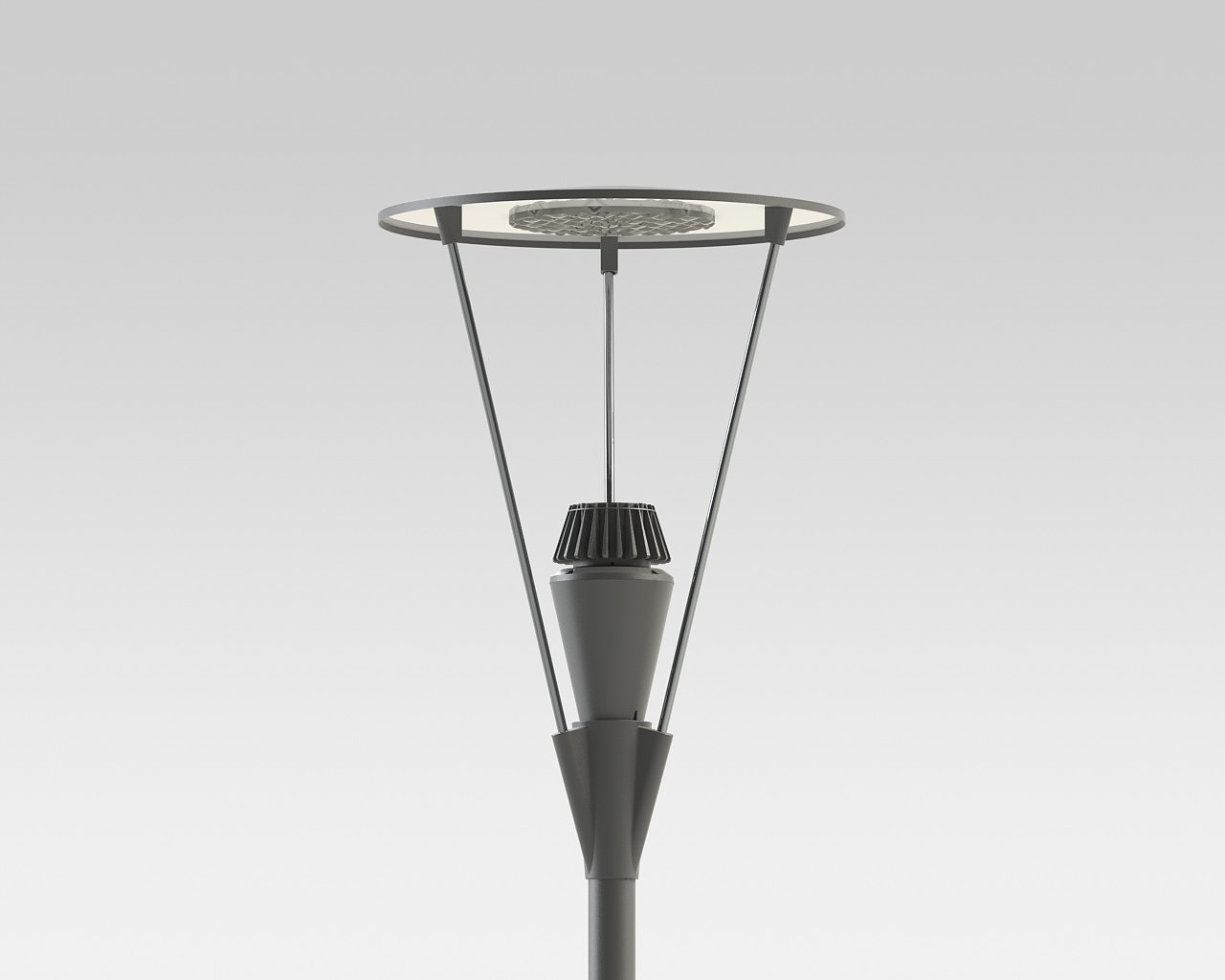

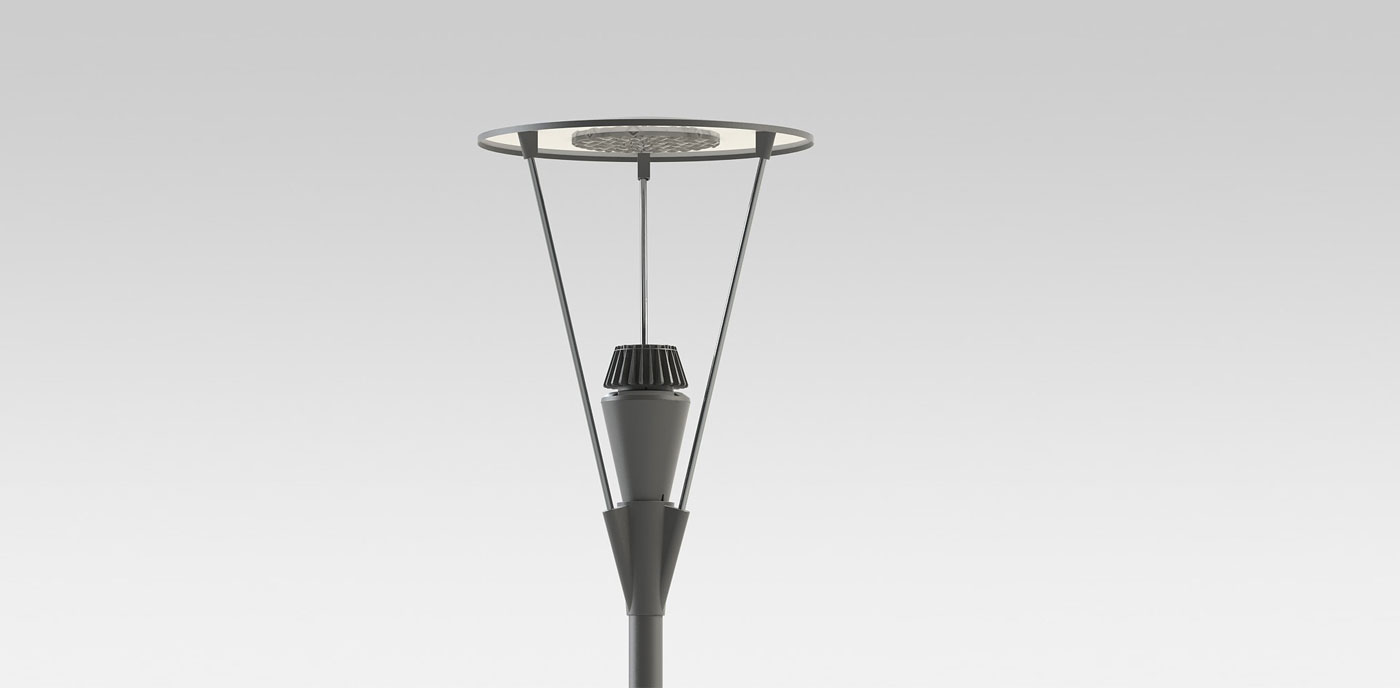

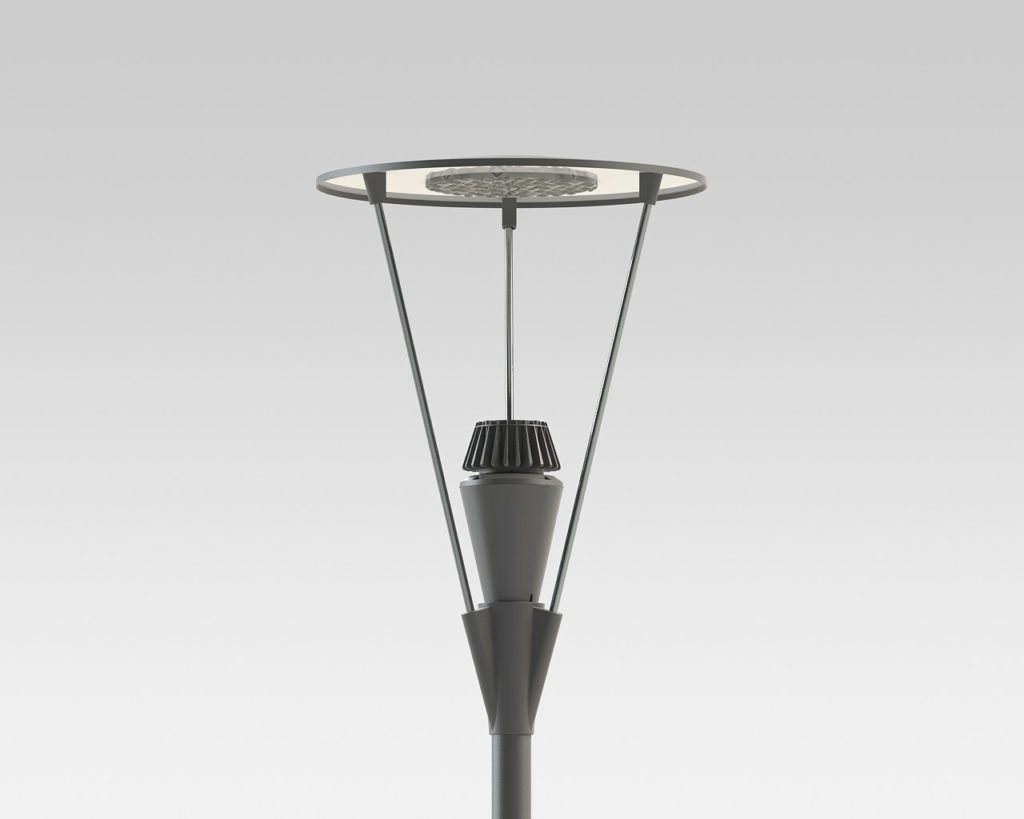

Decorative LED luminaire for post top mounting. Suitable for glare-free illumination of shopping streets, pedestrian precincts, parks and other landscapes. Ideal for the refurbishment of old luminaires due to compatible 76 mm spigot diameter.

Product Description

Housing cover formed of aluminium sheet, support brackets and projector made of die-cast aluminium

Line Voltage: 100-277V, 50/60HzRemovable built in driver (IP 67), replaceable
LED head.
All screws made of stainless steel. Light source by high performance COB LED in IP 65 projector with powder coated die-cast aluminium housing. Innovative lighting technology by secondary, glare free reflectorsystem. Available with symmetrical or asymmetrical reflectors. Recommended mounting height 4-6 meters.
Protection class:
IP65 dust proof and water jet proof with featured GOREĀ®Vent to protect the internal system from moisture. Weight 12kg (55W model) & 12.5kg (75W model)

Standard Configuration
Colour Temperature (k)2700K3000K4000K5000K6500K
Light DistributionSymmetricalAssymetrical
Colour FinishWhite (RAL9016)Silver Grey (RAL9006)Black (RAL9005)
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
PL01.2708.SY.xx80W2700K8851 lmSymmetrical
PL01.3008.SY.xx80W3000K9245 lmSymmetrical
PL01.4008.SY.xx80W4000K9482 lmSymmetrical
PL01.5008.SY.xx80W5000K9593 lmSymmetrical
PL01.2708.AS.xx80W2700K8851 lmAsymmetrical
PL01.3008.AS.xx80W3000K9245 lmAsymmetrical
PL01.4008.AS.xx80W4000K9482 lmAsymmetrical
PL01.5008.AS.xx80W5000K9593 lmAsymmetrical
