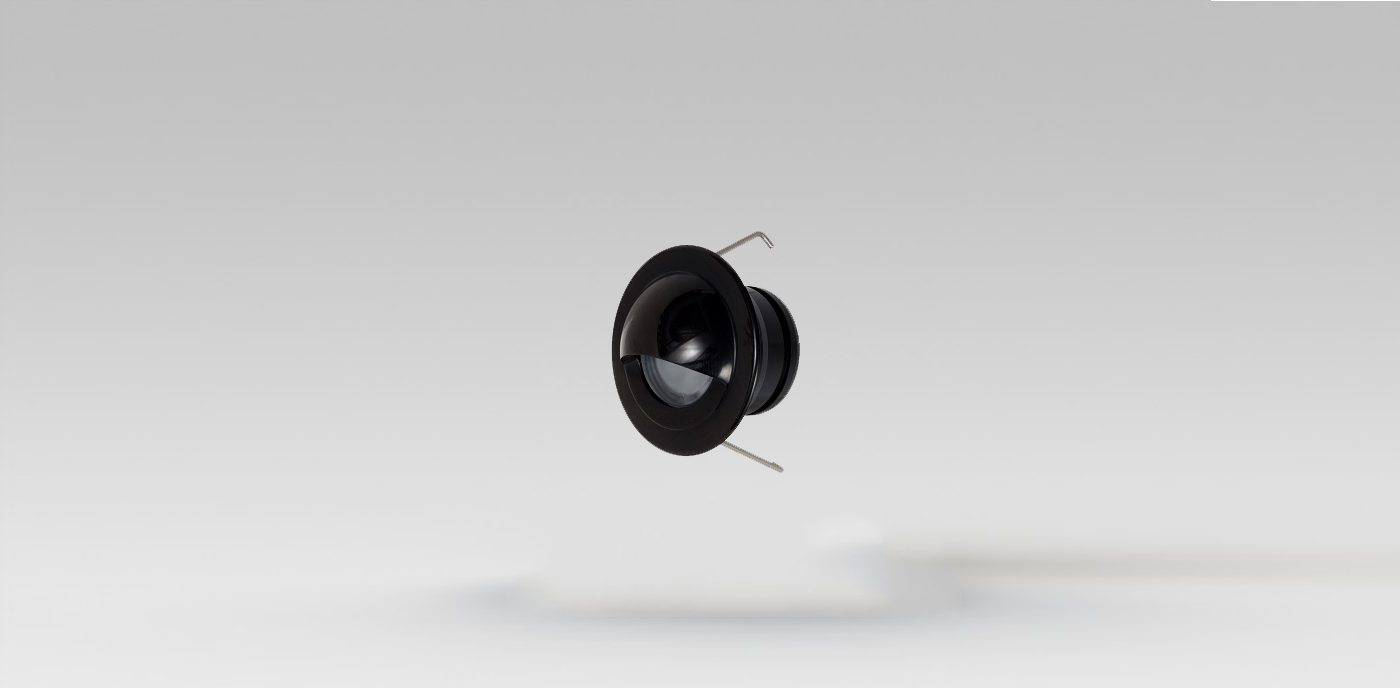

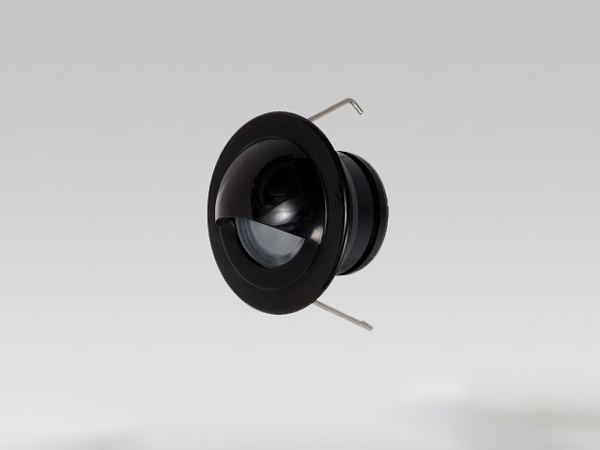

EYE LIGHTZ
1.6W Mini Spot Light

The EYE-LIGHTZ is named for its ability to have several different lens options. It’s ideal for lighting not only indoor stairs and hallways, but also outdoor pathways, decks or step lighting.

Product Description

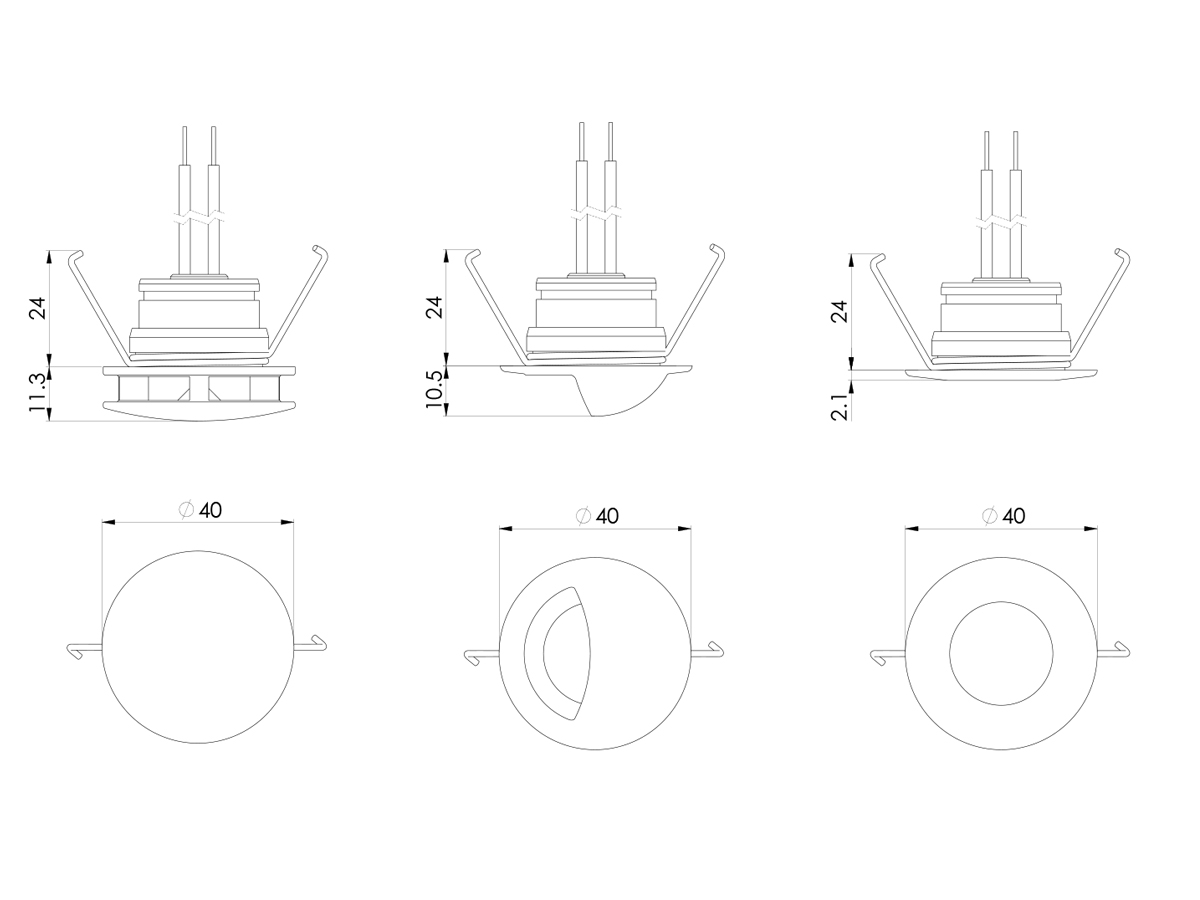

With an outside diameter of only 40mm, this product is small and discreet. Featuring a rather clever onboard driver unit, it allows 12 VDC wiring direct in, so wiring is in the standard parallel format.

Line voltage 100 ~ 270V ~ 50/60Hz High power COB LED with highly specular aluminium coated PC reflector.
Protection class:
Ingress Protection : IP65 dust proof and water jet proof
Weight: 1.5kg

Standard Configuration
Colour Temperature (k)2700K3000k
Light DistributionMediumWideEyelid
FinishPolished Stainless Steel 316Satin Black Stainless Steel 316
Wattage1.6W
Mounting AccessorySpikeSpring Mount
Part no.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
SPL05.2701.70.xx.xx1.6W2700k100 lm70°
SPL05.3001.70.xx.xx1.6W3000k100 lm70°
SPL05.2701.90.xx.xx1.6W2700k100 lm90°
SPL05.3001.90.xx.xx1.6W3000k100 lm90°
SPL05.2701.EYE.xx.xx1.6W2700k100 lmEyelid
SPL05.3001.EYE.xx.xx1.6W3000k100 lmEyelid
