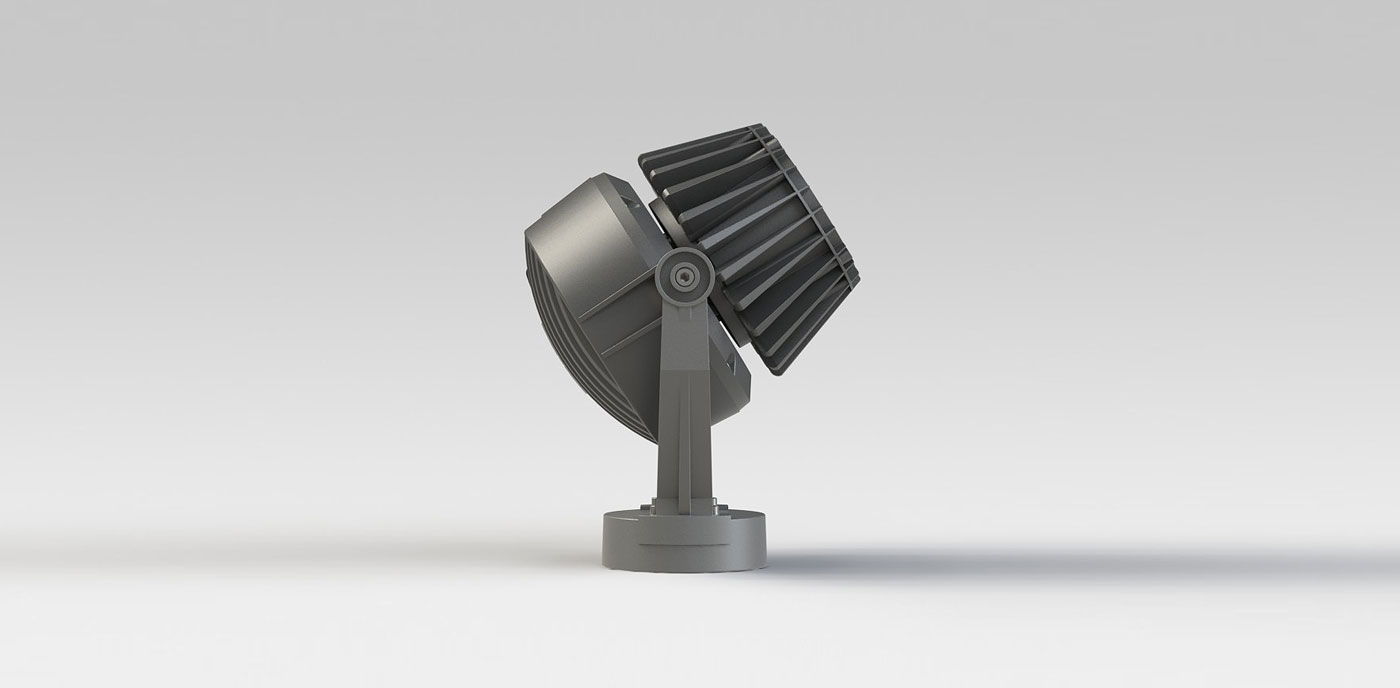

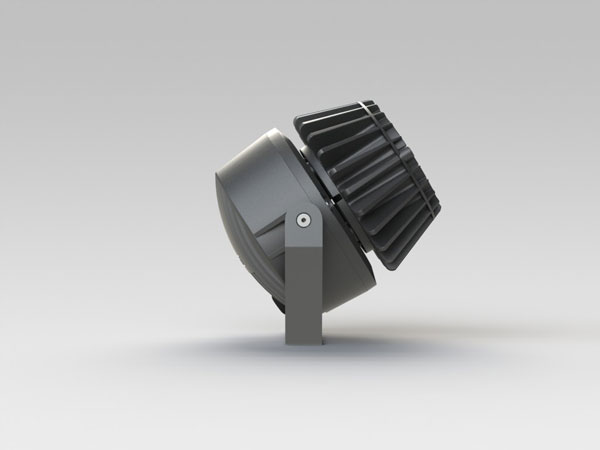

Grunzell Projektor B225 is an architectural IP65 rated luminaire that is suitable for both exterior use as well as for large public interior applications. The compact design makes it perfect for building facades, landscaping, entrances, security areas, terraces and gardens.

Product Description

The luminaire is constructed with the LED driver compartment with built in (IP67) driver thermally separated in a surface powder coated corrosion resistant die cast aluminium housing with featured GORE®Vent to protect the internal system from moisture.

Line voltage 100 ~ 270V ~ 50/60Hz
High power COB LED with highly specular
aluminium coated PC reflector.
Protection class:
Ingress Protection : IP65 dust proof and
water jet proof
Weight 4.2kg

Standard Configuration
Colour Temperature (k)2700K3000K4000K5000K
Light DistributionSpotMediumWideLinear Spread
Colour FinishWhite (RAL 9016)Silver Grey (RAL 9006)Black (9005)
Optional AccessoriesSnootWide SnootGlare ShieldVisorLinear Spread LensColour Filter
Mounting AccessoryIP65 Gear BaseCast Mounted StirrupGround Stake
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
PJL03.2704.09.x.xx35W2700K3128 lm
PJL03.3004.09.x.xx35W3000K3284 lm
PJL03.4004.09.x.xx35W4000K3617 lm
PJL03.5004.09.x.xx35W5000K3482 lm
PJL03.2704.15.x.xx35W2700K5107 lm15°
PJL03.3004.15.x.xx35W3000K5326 lm15°
PJL03.4004.15.x.xx35W4000K5463 lm15°
PJL03.5004.15.x.xx35W5000K5526 lm15°
PJL03.2704.26.x.xx35W2700K5107 lm26°
PJL03.3004.26.x.xx35W3000K5326 lm26°
PJL03.4004.26.x.xx35W4000K5463 lm26°
PJL03.5004.26.x.xx35W5000K5526 lm26°
PJL03.2704.52.x.xx35W2700K5107 lm52°
PJL03.3004.52.x.xx35W3000K5326 lm52°
PJL03.4004.52.x.xx35W4000K5463 lm52°
PJL03.5004.52.x.xx35W5000K5526 lm52°
