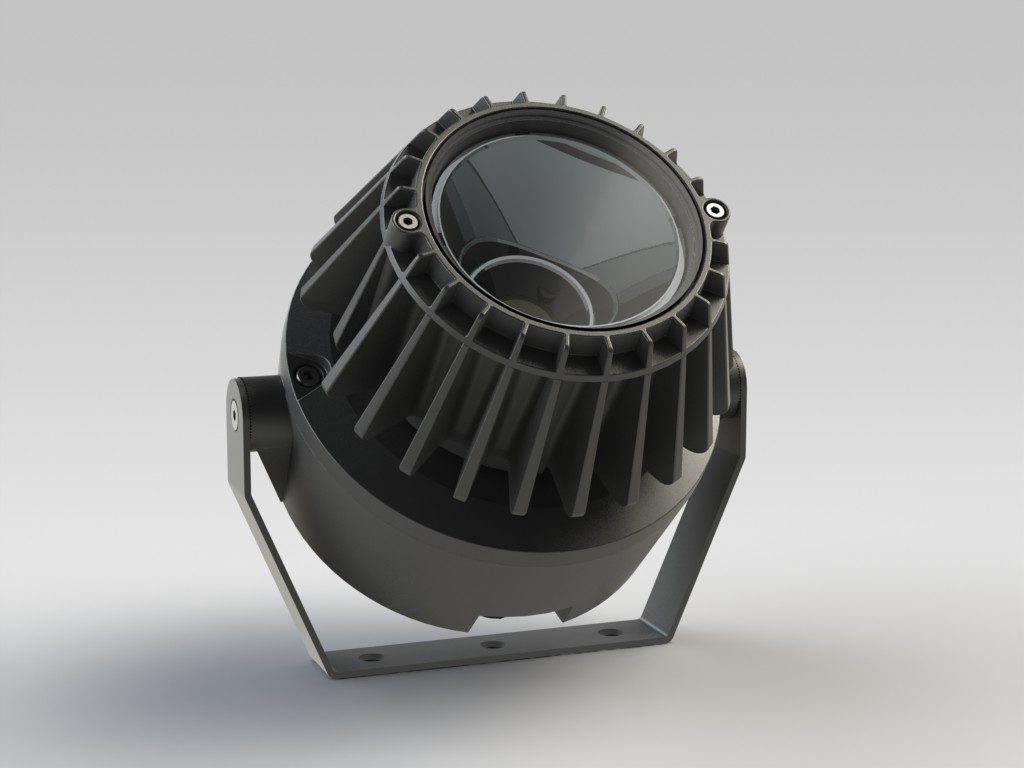

Grunzell Projektor B218 is an architectural IP65 rated luminaire that is suitable for both exterior use as well as for large public interior applications. The compact design makes it perfect for building facades, landscaping, entrances, security areas, terraces and gardens.

Product Description

The luminaire is constructed with the LED driver compartment with built in (IP67) driver thermally separated in a surface powder coated corrosion resistant die cast aluminium housing with featured GORE®Vent to protect the internal system from moisture.

Line voltage 100 ~ 270V ~ 50/60Hz High power COB LED with highly specular aluminium coated PC reflector.
Protection class:
Ingress Protection : IP65 dust proof and water jet proof
Weight: 1.5kg

Standard Configuration
Colour Temperature (k)2700K3000K4000K5000K
Light DistributionSpotMediumWideLinear Spread
Colour FinishWhite (RAL9016)Silver Grey (RAL9006)Black (RAL9005)
Optional AccessoriesSnootWide SnootGlare ShieldVisorLinear Spread LensColour Filter
Mounting AccessoriesIP65 Gear BaseCast Mounted StirrupGround Stake
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
PJL02.2702.08.x.xx25W2700K3010 lm
PJL02.3002.08.x.xx25W3000K3138 lm
PJL02.4002.08.x.xx25W4000K3217 lm
PJL02.5002.08.x.xx25W5000K3256 lm
PJL02.2702.15.x.xx25W2700K3010 lm15°
PJL02.3002.15.x.xx25W3000K3138 lm15°
PJL02.4002.15.x.xx25W4000K3217 lm15°
PJL02.5002.15.x.xx25W5000K3256 lm15°
PJL02.2702.30.x.xx25W2700K3010 lm30°
PJL02.3002.30.x.xx25W3000K3138 lm30°
PJL02.4002.30.x.xx25W4000K3217 lm30°
PJL02.5002.30.x.xx25W5000K3256 lm30°
PJL02.2702.56.x.xx25W2700K3010 lm56°
PJL02.3002.56.x.xx25W3000K3138 lm56°
PJL02.4002.56.x.xx25W4000K3217 lm56°
PJL02.5002.56.x.xx25W5000K3256 lm56°
