JURA

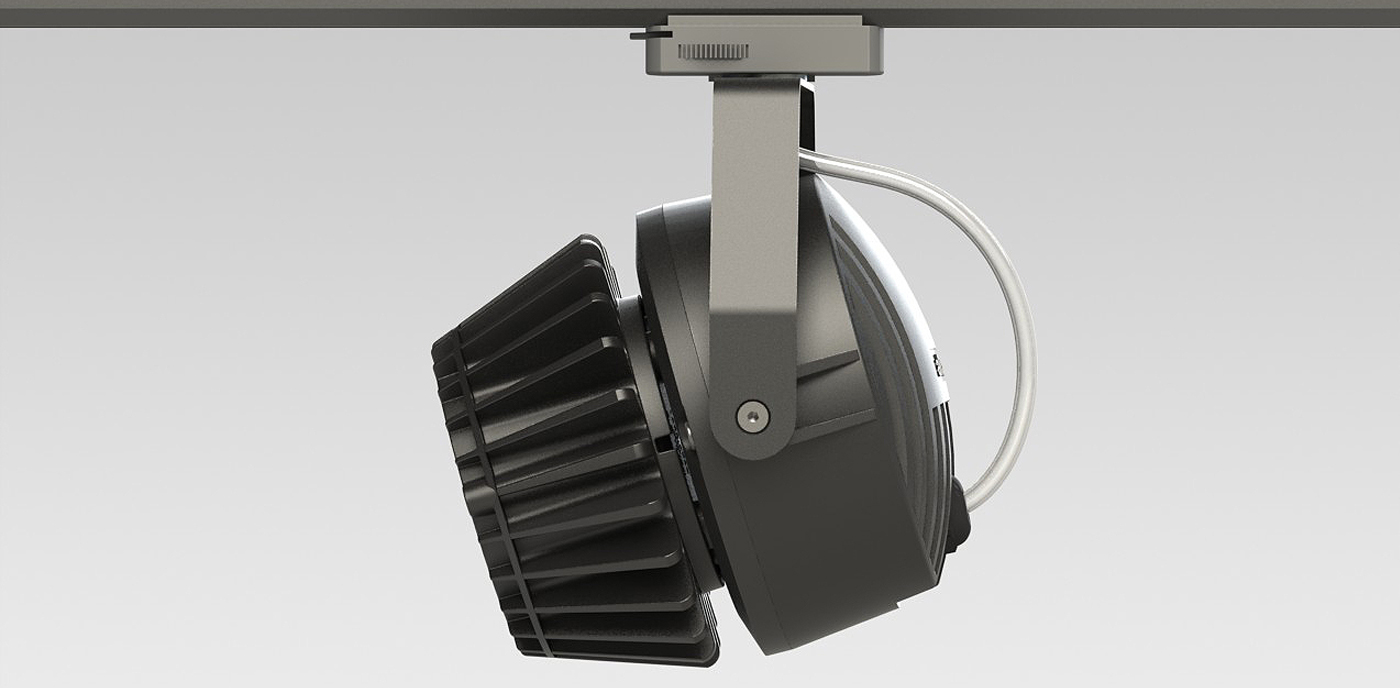

Grunzell JURA is a surface mounted LED Projector for axially symmetrical light distribution with built-in driver. Suitable for operation on multi circuit power tracks, JURA can fulfil a wide range of lighting tasks for various indoor environments and is ideal for studios, shops, restaurants, galleries and museums.

Product Description

The luminaire is constructed with the LED driver compartment with built in (IP67) driver thermally separated in a surface powder coated corrosion resistant die cast aluminium housing with featured GORE®Vent to protect the internal system from moisture.

Compact designed housing made in surface powder coated die cast aluminium with aluminium adjustable corrosion resistant stirrup and multi adaptor for 3-circuit power track.
LED engine and driver compartment thermally separated for optimum thermal management.
High performance COB LED with highly specular aluminium coated polycarbonate reflector. M12 cable entry and tempered safety glass cover. IP20 Weight 1.6kg

Standard Configuration
Colour Temperature (k)2700K3000K4000K5000K
Light DistributionSpotMediumWideLinear Spread
Colour FinishWhite (RAL 9016)Silver Grey (RAL 9006)Black (9005
Wattage14W25W
Optional AccessoriesSnootWide SnootGlare ShieldVisorLinear Spread LensColour FilterHoneycomb Louvre
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
TRL01.2701.8.x.xx14W2700K1789 lm
TRL01.3001.8.x.xx14W3000K1865 lm
TRL01.4001.8.x.xx14W4000K1912 lm
TRL01.5001.8.x.xx14W5000K1936 lm
TRL01.2701.15.x.xx14W2700K1789 lm15°
TRL01.3001.15.x.xx14W3000K1865 lm15°
TRL01.4001.15.x.xx14W4000K1912 lm15°
TRL01.5001.15.x.xx14W5000K1936 lm15°
TRL01.2701.30.x.xx14W2700K1789 lm30°
TRL01.3001.30.x.xx14W3000K1865 lm30°
TRL01.4001.30.x.xx14W4000K1912 lm30°
TRL01.5001.30.x.xx14W5000K1936 lm30°
TRL01.2701.56.x.xx14W2700K1789 lm56°
TRL01.3001.56.x.xx14W3000K1865 lm56°
TRL01.4001.56.x.xx14W4000K1912 lm56°
TRL01.5001.56.x.xx14W5000K1936 lm56°
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
TRL01.2702.8.x.xx25W2700K3010 lm
TRL01.3002.8.x.xx25W3000K3138 lm
TRL01.4002.8.x.xx25W4000K3217 lm
TRL01.5002.8.x.xx25W5000K3256 lm
TRL01.2702.15.x.xx25W2700K3010 lm15°
TRL01.3002.15.x.xx25W3000K3138 lm15°
TRL01.4002.15.x.xx25W4000K3217 lm15°
TRL01.5002.15.x.xx25W5000K3256 lm15°
TRL01.2702.30.x.xx25W2700K3010 lm30°
TRL01.3002.30.x.xx25W3000K3138 lm30°
TRL01.4002.30.x.xx25W4000K3217 lm30°
TRL01.5002.30.x.xx25W5000K3256 lm30°
TRL01.2702.56.x.xx25W2700K3010 lm56°
TRL01.3002.56.x.xx25W3000K3138 lm56°
TRL01.4002.56.x.xx25W4000K3217 lm56°
TRL01.5002.56.x.xx25W5000K3256 lm56°
