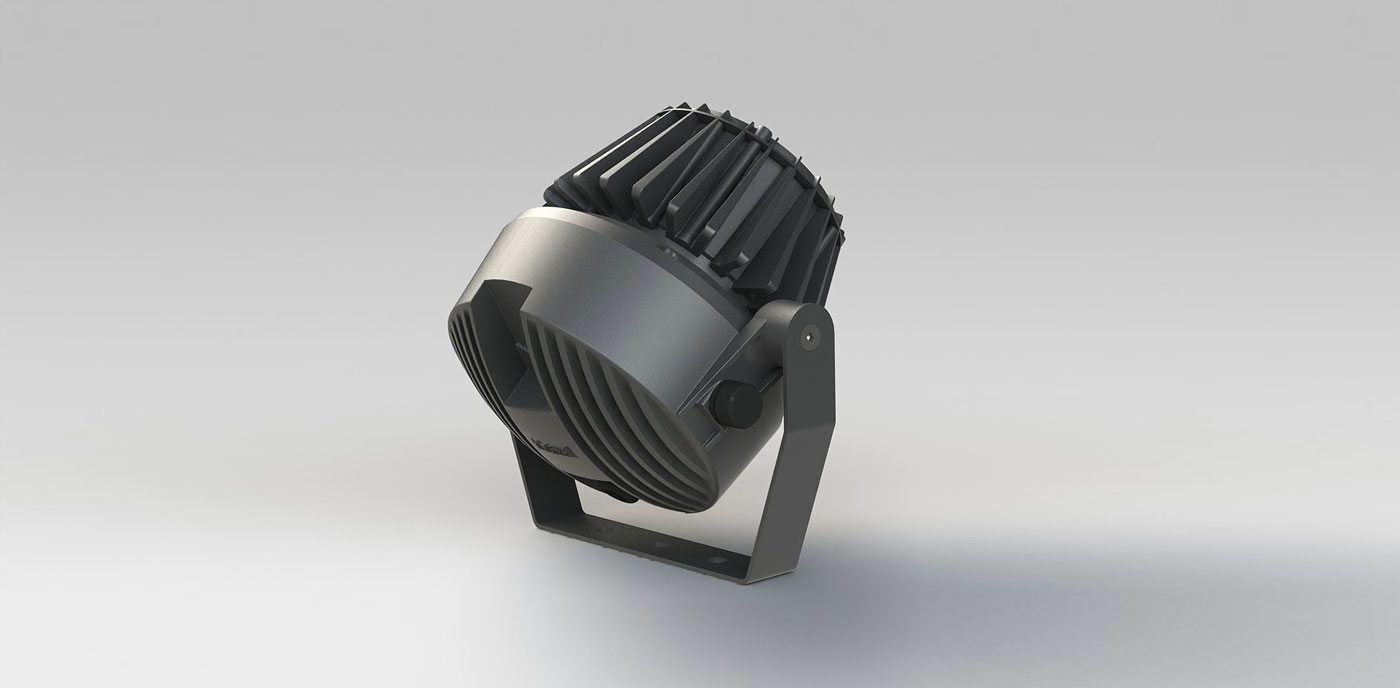

Grunzell Projektor B228 is an architectural IP65 rated luminaire that is suitable for both exterior use as well as for large public interior applications. The compact design makes it perfect for building facades, landscaping, entrances, security areas, terraces and gardens.

Product Description

The luminaire is constructed with the LED driver compartment with built in (IP67) driver thermally separated in a surface powder coated corrosion resistant die cast aluminium housing with featured GORE®Vent to protect the internal system from moisture.

Line voltage 100 ~ 270V ~ 50/60Hz
High power COB LED with highly specular
aluminium coated PC reflector.
Protection class:
Ingress Protection : IP65 dust proof and
water jet proof
Weight 4.2kg

Standard Configuration
Colour Temperature (k)2700K3000K4000K5000K
Light DistributionSpotMediumWideLinear Spread
Colour FinishWhite (RAL9016)Silver Grey (RAL9006)Black (RAL9005)
Optional AccessoriesSnootWide SnootGlare ShieldVisorLinear Spread LensColour Filter
Mounting AccessoriesIP65 Gear BaseCast Mounted StirrupGround Stake
Part No.PowerColour TemperatureNominal LumensBeam AnglePDFIES Files
PJL03.2706.09.x.xx60W2700K3858 lm
PJL03.3006.09.x.xx60W3000K4554 lm
PJL03.4006.09.x.xx60W4000K4671 lm
PJL03.5006.09.x.xx60W5000K4989 lm
PJL03.2706.15.x.xx60W2700K7023 lm15°
PJL03.3006.15.x.xx60W3000K7324 lm15°
PJL03.4006.15.x.xx60W4000K7512 lm15°
PJL03.5006.15.x.xx60W5000K7599 lm15°
PJL03.2706.26.x.xx60W2700K7023 lm26°
PJL03.3006.26.x.xx60W3000K7324 lm26°
PJL03.4006.26.x.xx60W4000K7512 lm26°
PJL03.5006.26.x.xx60W5000K7599 lm26°
PJL03.2706.52.x.xx60W2700K7023 lm52°
PJL03.3006.52.x.xx60W3000K7324 lm52°
PJL03.4006.52.x.xx60W4000K7512 lm52°
PJL03.5006.52.x.xx60W5000K7599 lm52°
